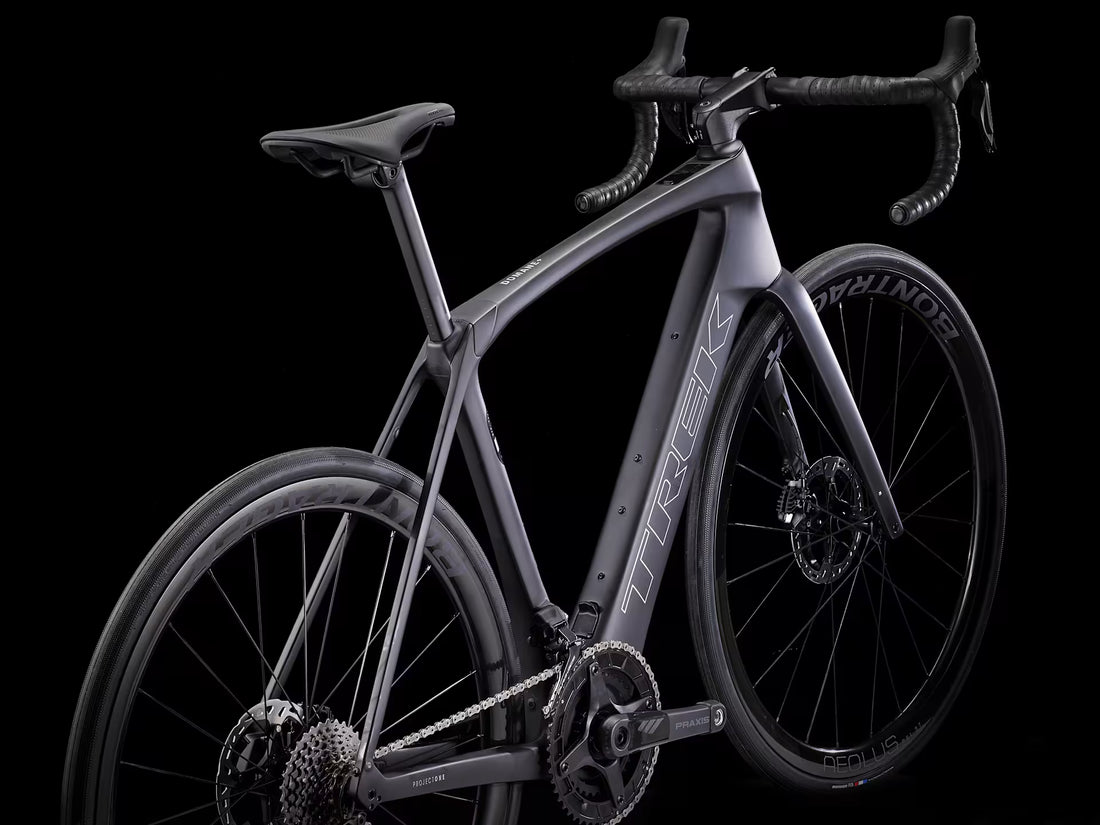

TREK DOMANE + SLR9 DURA ACE
Details
TREK DOMANE + SLR9 DURA ACE 12 SPEED
The Domane+ SLR 9 is a category-redefining carbon e-road bike built with intensely light 800 Series OCLV Carbon. It hides a compact, refined motor to elevate your ride with natural-feeling assist that quietly blends in with the elements, all but disappearing under you, so you stay more connected to the experience while enjoying extra power for crushing climbs and long, epic adventures. It's all topped off with the best parts, like Shimano's top wireless electronic drivetrain – Dura-Ace Di2.
- Frame
-
800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, mudguard mounts, 142x12 mm thru axle
- Fork
-
Domane+ carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
- Frame fit
- Endurance
- Weight
- 56 – 11.75 kg/25.91 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
-
TQ 360Wh
- Charger
-
TQ 4A charger

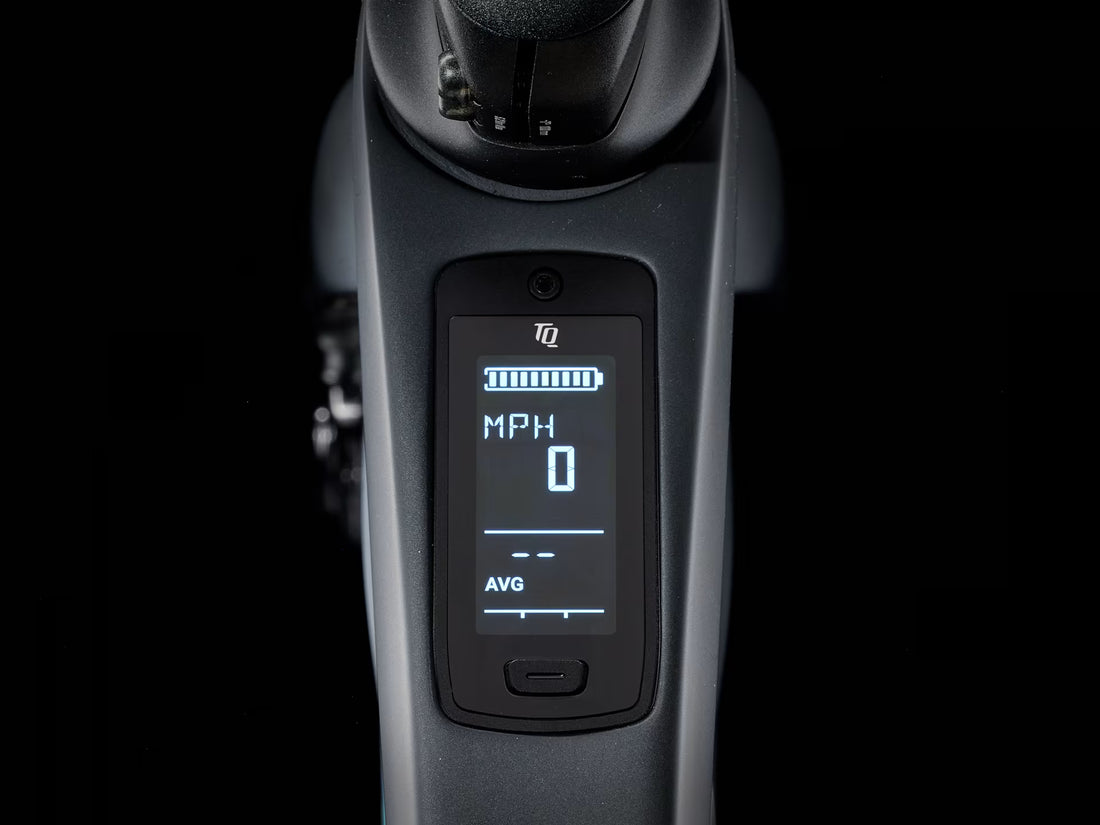

- Computer
-
TQ LED display with Bluetooth & ANT+ connectivity
- Motor
-
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
- Shifter
-
Shimano Dura-Ace R9270 Di2, 12 speed
- Front derailleur
-
Shimano Dura-Ace R9250 Di2, braze-on, down swing
- Rear derailleur
-
Shimano Dura-Ace R9250 Di2, 34T max cog

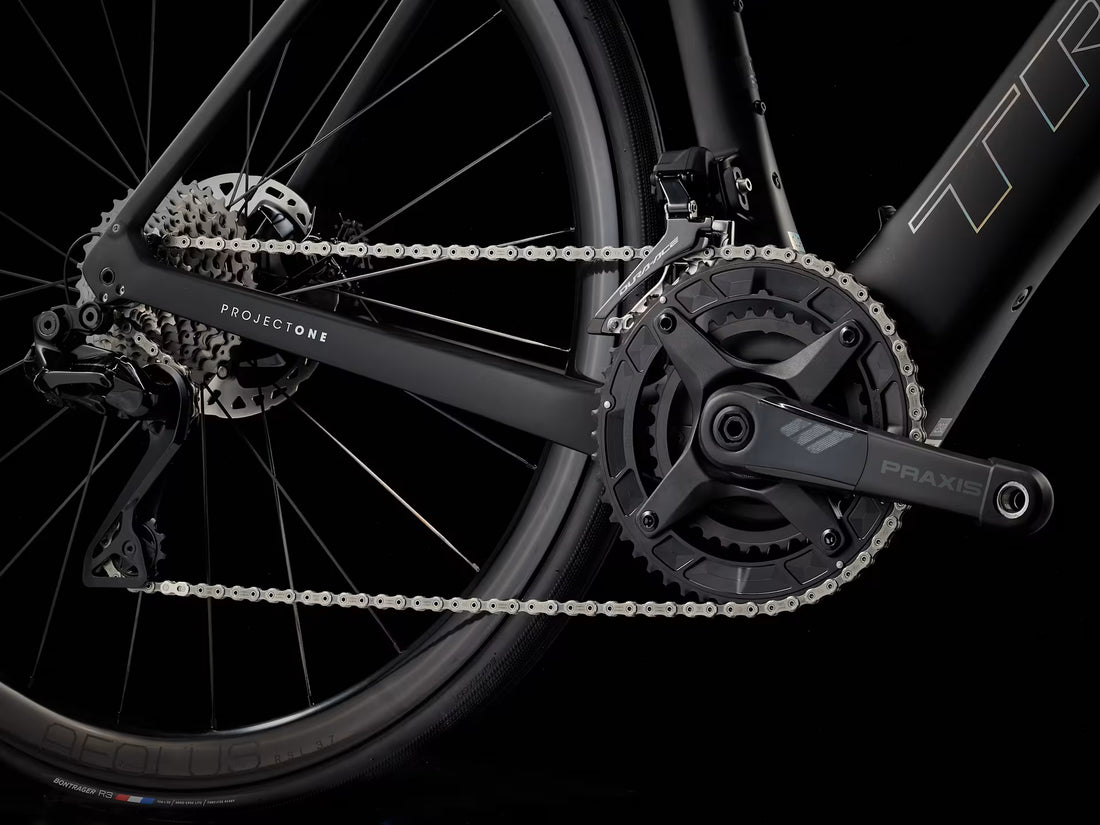

- *Crank
-
Size: 50, 52
Praxis Carbon, 170 mm lengthSize: 54, 56
Praxis Carbon, 172.5 mm lengthSize: 58, 60, 62
Praxis Carbon, 175 mm length - Chainring
-
Praxis, 50/34T, 12-speed
- Cassette
-
Shimano Dura-Ace R9200, 11-34, 12-speed
- Chain
-
Shimano Dura-Ace/XTR M9100, 12-speed
- Max. chainring size
- 1x: 46T, 2x: 52/36
- Wheel front
-
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
- Wheel rear
-
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
- Skewer front
-
Bontrager Switch thru-axle
- Skewer rear
-
Bontrager Switch thru axle, removable lever
- Tyre
-
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
Bontrager TLR
- Max tyre size
- 40 mm without mudguards, 35 mm with mudguards
- *Saddle
-
Size: 50, 52
Verse Short Pro, carbon rails, 155 mm widthSize: 54, 56, 58, 60, 62
Verse Short Pro, carbon rails, 145 mm width - *Seatpost
-
Size: 50, 52, 54, 56
KVF aero carbon seat post, 20 mm offset, 280 mm lengthSize: 58, 60, 62
KVF aero carbon seat post, 20 mm offset, 320 mm length - *Handlebar
-
Size: 50, 52
Bontrager Pro IsoCore VR-SF, 40cmSize: 54, 56
Bontrager Pro IsoCore VR-SF, 42cmSize: 58, 60, 62
Bontrager Pro IsoCore VR-SF, 44cm - Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
-
Size: 50
Trek RCS Pro, -7-degree, 80 mm lengthSize: 52, 54
Trek RCS Pro, -7-degree, 90 mm lengthSize: 56, 58
Trek RCS Pro, -7-degree, 100 mm lengthSize: 60, 62
Trek RCS Pro, -7-degree, 110 mm length - Brake
-
Shimano Dura-Ace BR-9270 hydraulic disc, flat mount caliper, resin pad w/fin.
- Brake rotor
-
Shimano MT900, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 180 mm front, 160 mm rear
